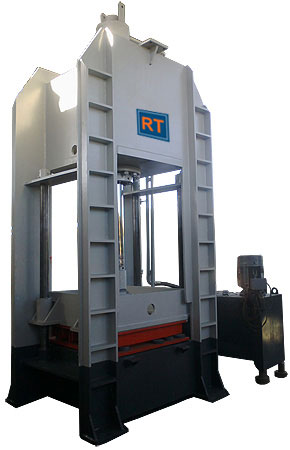

Hydraulic Press Brake Hydraulic Press 125 Ton
Hydraulic Press Brake Hydraulic Press 125ton

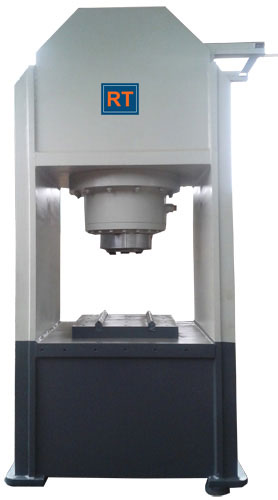

Hydraulic Press 500 Ton
Hydraulic Press 500ton

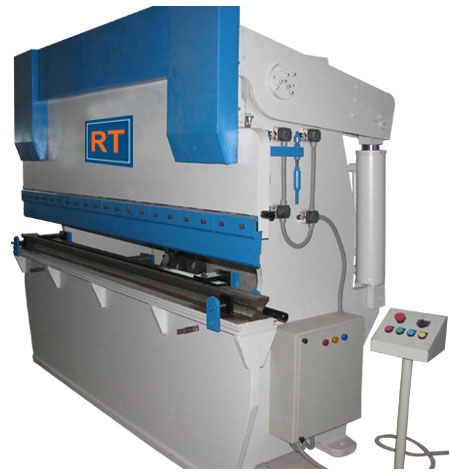

RT Power Press Hydraulic Press Brakes are designed and developed through years of experience in sheet metal working machinaries. RT Power Press Hydraulic Press Brakes are developed by keeping latest technology in mind. Both cylinders are mounted at back side of Press Brake are synchronized for parallesm between ram & table, by providing mechanical links connected with cylinder. The heavy duty steel construction frame is so designed to absorb heavy shocks of overload. All welding edges are properly machined for best weld joints. The electric control panel is fixed on side wall at conventional place for easy reach of operator. It includes push botton pendant and foot switch. Standard ā€œVā€ block & ā€œVā€ Punch and manually operated back guage system which is front operated are supplied as a standard accessories. Hydraulic components are of reputed make like Videkers, Rexroth, Dowty, Yuken, Polyhydron etc.



Specifications:



Model

Tonnage

Bending Cap.(In M.S., UTS 45Kg/mm2)

Table Length

Table Width

Clear Pass

Ram Stroke

Open Height

Throat Depth

Speed Approch Pressing Return

Power H.P.

Over all Diamensions
(L x W x H)

Approx. Weight Kgs.

RHP215

20

1.6 x 1500

2 x 1250

1500

125

1250

100

250

100

35-9-35

2

1800 x 1500 x 2000

1500

RHP320

30

2 x 2000

3 x 1250

2000

125

1700

100

280

200

30-7-30

3

2300 x 1600 x 2000

2500

RHP425

40

2 x 2500

3 x 1500

2500

170

2000

100

280

200

40-8-40

3

2700 x 1850 x 2050

3000

RHP515

50

4 x 1500

5 x 1250

1500

170

1000

100

280

200

35-7-35

5

1800 x 1500 x 2000

2500

RHP520

50

3 x 2000

4 x 1500

2000

170

1500

100

280

200

35-7-35

5

2300 x 1900 x 2200

3400

RHP525

50

2.5 x 2500

3 x 2000

2500

170

2000

100

280

200

35-7-35

5

2850 x 1900 x 2200

3700

RHP625

65

3 x 2500

4 x 2000

2500

170

2000

150

330

200

30-5-30

5

2850 x 1950 x 2350

3900

RHP630

65

2.5 x 3000

3 x 2500

3000

170

2500

150

330

200

30-5-30

5

3350 x 1950 x 2350

4300

RHP825

80

4 x 2500

5 x 2000

2500

170

2000

150

350

200

38-6-45

7.5

2850 x 2100 x 2350

4500

RHP830

80

3 x 3000

4 x 2500

3000

170

2500

150

350

200

38-6-45

7.5

3350 x 2100 x 2350

5000

RHP1025

100

5 x 2500

6 x 2000

2500

170

2000

150

350

200

38-6-45

7.5

2900 x 2200 x 2350

5600

RHP1030

100

4 x 3000

5 x 2500

3000

170

2500

150

350

200

38-6-45

7.5

3400 x 2200 x 2350

6200

RHP1040

100

3 x 4000

4 x 3000

4000

170

3000

150

350

200

38-6-45

7.5

4250 x 2200 x 2350

7000

RHP1225

125

6 x 2500

8 x 2000

2500

220

2000

150

350

300

38-5-40

10

2750 x 2450 x 2600

6500

RHP1230

125

5 x 3000

6 x 2500

3000

220

2500

150

350

300

38-5-40

10

3400 x 2450 x 2600

7000

RHP1240

125

4 x 4000

5 x 3000

4000

220

3000

150

350

300

38-5-40

10

4150 x 2450 x 2650

8800

RHP1625

160

8 x 2500

10 x 2000

2500

220

2000

150

350

300

35-6-40

15

2750 x 2500 x 2600

8200

RHP1630

160

6 x 3000

8 x 2500

3000

220

2500

150

350

300

35-6-40

15

3400 x 2500 x 2600

8800

RHP1640

160

5 x 4000

6 x 3000

4000

220

3000

150

350

300

35-6-40

15

4200 x 2500 x 2700

9800

RHP2025

200

10 x 2500

12 x 2000

2500

220

2000

200

410

300

35-7-35

20

2850 x 2650 x 2700

8500

RHP2030

200

8 x 3000

10 x 2500

3000

220

2500

200

410

300

35-7-35

20

3450 x 2650 x 2700

9500

RHP2040

200

6 x 4000

8 x 3000

4000

220

3000

200

410

300

35-7-35

20

4200 x 2650 x 2800

10500

RHP2530

250

10 x 3000

12 x 2500

3000

300

2500

200

410

300

35-6-40

25

3350 x 2650 x 2800

12000

RHP2540

250

8 x 4000

10 x 3000

4000

300

3000

200

410

300

35-6-40

25

4350 x 2650 x 2800

13500

RHP3030

300

12 x 3000

15 x 2500

3000

300

2500

200

410

300

30-6-35

30

3450 x 2750 x 2800

12000

RHP3040

300

10 x 4000

12 x 3000

4000

300

3000

200

410

300

30-6-35

30

4250 x 2750 x 2900

15000

RHP4030

400

16 x 3000

20 x 2500

3000

300

2500

250

500

300

30-5-35

40

3350 x 2900 x 3000

17000

RHP4040

400

12 x 4000

16 x 3000

4000

300

3000

250

500

300

30-5-35

40

4300 x 2900 x 3000

18000



Capacities rated for M.S. (U.T.S. 45kg/mm2). Bending capacities stated are only representative and not binding. Allow extra capacity for material inconsistencies, bending conditions. Right to change specification, features without notice reserved. Compliance with safety requirements as per local regulations is responsibility of the user.



Standard Features:



Electric motor, Control Panel with selection of INCH-ONCE-AUTO Mode of operation. Foot switch. Fine stroke adjustment rod with limit switches, Manual Lubrication, Manual Back Guage, Standard V Block Punch, Insruction Manual.



Options:

Goose Neck Punch & other tooling (drawing required), Electronic Stroke Counter, NC Operated Back Guage, Automatic Lubrication System.

  • All Dimensions are in mm.
  • Power supply 400/440 volts, 3 Phase, 50 Cycle.
  • As day to day Improvements are contemplated for better performance of the machine. We reserve the rights to alter the specifications without prior notice.
  • All the machines undergo a through check-up by our expert engineers before dispatch to ensure their smooth and trouble free operation.
  • Electricals are not under warranty.
