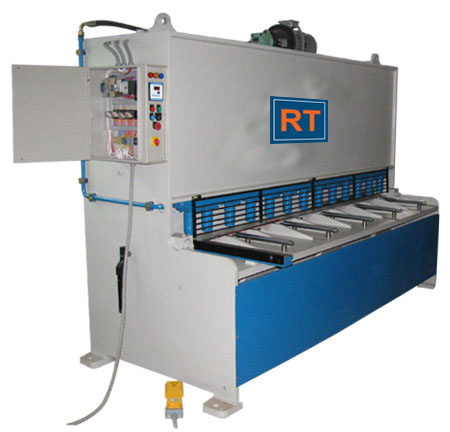

| Hydraulic Shearing Machine |
Hydraulic Single Cylinder Shearing Machine |
|
| |
Specifications: |
| |
Model |
Shearing Length mm |
Shear Thic. Rake Angle/(Min/Max) |
Rake Angle |
Rake Angle Range |
Strokes/minute at Min & Max Rake Angle |
Holddowns |
Holding Force Kgs. |
Power H.P. |
Ovar all Diamensions in mm
( L x W x H ) |
Approx. Weight Kgs. |
M.S. |
S.S. |
RHV325 |
2500 |
3.15/4 |
2/3 |
1°15' |
0.5-2° |
28-13 |
13 |
2500 |
5 |
3150 x 2000 x 2400 |
3800 |
RHV330 |
3000 |
3.15/4 |
2/3 |
1°15' |
0.5-2° |
24-9 |
16 |
2500 |
5 |
3500 x 2000 x 2400 |
440 |
RHV412 |
1250 |
4/6 |
3/4 |
1°37' |
0.5-3° |
33-17 |
5 |
4000 |
5 |
2000 x 2000 x 2400 |
2700 |
RHV415 |
1500 |
4/6 |
3/4 |
1°37' |
0.5-3° |
30-15 |
8 |
4500 |
5 |
2250 x 2000 x 2400 |
3200 |
RHV420 |
2000 |
4/6 |
3/4 |
1°37' |
0.5-3° |
28-13 |
11 |
6200 |
7.5 |
2750 x 2000 x 2400 |
3500 |
RHV425 |
2500 |
4/6 |
3/4 |
1°37' |
0.5-3° |
26-8 |
13 |
8000 |
7.5 |
3400 x 2350 x 2450 |
5200 |
RHV430 |
3000 |
4/6 |
3/4 |
1°37' |
0.5-3° |
24-6 |
16 |
10000 |
10 |
4000 x 2350 x 2450 |
6000 |
RHV440 |
4000 |
4/6 |
3/4 |
1°45' |
0.5-3° |
22-6 |
20 |
12000 |
10 |
4500 x 2350 x 2450 |
85000 |
RHV615 |
1500 |
6/8 |
4/6 |
1°45' |
0.5-3° |
24-8 |
9 |
6600 |
10 |
2250 x 2350 x 2500 |
4000 |
RHV620 |
2000 |
6/8 |
4/6 |
1°45' |
0.5-3° |
22-7 |
11 |
6500 |
10 |
2750 x 2350 x 2500 |
4300 |
RHV625 |
2500 |
6/8 |
4/6 |
1°45' |
0.5-3° |
28-8 |
14 |
8500 |
15 |
3400 x 2350 x 2500 |
6200 |
RHV630 |
3000 |
6/8 |
4/6 |
1°45' |
0.5-3° |
24-6 |
16 |
10800 |
15 |
4000 x 2350 x 2500 |
7000 |
RHV640 |
4000 |
6/8 |
4/6 |
2° |
0.5-3° |
24-6 |
20 |
13600 |
20 |
5100 x 2700 x 2800 |
8400 |
RHV815 |
1500 |
8/10 |
6/8 |
2° |
0.5-3° |
22-10 |
9 |
10500 |
15 |
2250 x 2600 x 2650 |
5000 |
RHV820 |
2000 |
8/10 |
6/8 |
2° |
0.5-3° |
18-8 |
11 |
12500 |
15 |
2750 x 2600 x 2650 |
5500 |
RHV825 |
2500 |
8/10 |
6/8 |
2° |
0.5-3° |
24-8 |
14 |
16300 |
20 |
3500 x 2600 x 2650 |
6800 |
RHV830 |
3000 |
8/10 |
6/8 |
2° |
0.5-3° |
20-6 |
16 |
18500 |
20 |
4200 x 2600 x 2650 |
7700 |
RHV840 |
4000 |
8/10 |
6/8 |
2° |
0.5-3° |
20-8 |
20 |
23000 |
25 |
5200 x 2900 x 2800 |
13500 |
RHV1015 |
1500 |
10/13 |
8/10 |
2° |
0.5-3° |
20-10 |
9 |
10500 |
15 |
2250 x 2650 x 2700 |
5500 |
RHV1020 |
2000 |
10/13 |
8/10 |
2° |
0.5-3° |
18-8 |
11 |
12600 |
15 |
2750 x 2650 x 2700 |
6000 |
RHV1025 |
2500 |
10/13 |
8/10 |
2° |
0.5-3° |
24-8 |
14 |
17500 |
20 |
3600 x 2650 x 2700 |
8000 |
RHV1030 |
3000 |
10/13 |
8/10 |
2° |
0.5-3° |
20-6 |
16 |
20000 |
20 |
4200 x 2650 x 2700 |
10500 |
RHV1040 |
4000 |
10/13 |
8/10 |
2° |
0.5-3° |
18-6 |
20 |
25000 |
30 |
5200 x 2900 x 2900 |
15200 |
RHV1320 |
2000 |
13/16 |
10/13 |
2° |
1-3° |
13-5 |
11 |
16500 |
20 |
2750 x 2650 x 2950 |
7000 |
RHV1325 |
2500 |
13/16 |
10/13 |
2° |
1-3° |
15-10 |
13 |
32000 |
25 |
3600 x 2650 x 2950 |
9600 |
RHV1330 |
3000 |
13/16 |
10/13 |
2° |
1-3° |
12-6 |
16 |
37000 |
25 |
4200 x 2650 x 2950 |
11800 |
RHV1340 |
4000 |
13/16 |
10/13 |
2° |
1-3° |
10-4 |
20 |
22000 |
30 |
5200 x 3000 x 3050 |
17800 |
RHV1620 |
2000 |
16/20 |
13/16 |
2° |
1-3° |
13-7 |
11 |
20000 |
25 |
2750 x 2950 x 3150 |
12000 |
RHV1625 |
2500 |
16/20 |
13/16 |
2° |
1-3° |
15-8 |
13 |
40000 |
30 |
3600 x 2950 x 3150 |
12000 |
RHV1630 |
3000 |
16/20 |
13/16 |
2° |
1-3° |
12-6 |
16 |
43500 |
30 |
4250 x 2950 x 3150 |
15300 |
RHV1640 |
4000 |
16/20 |
13/16 |
2° |
1-3° |
10-4 |
20 |
30000 |
30 |
5200 x 3050 x 3500 |
21500 |
RHV2020 |
2000 |
20/25 |
16/20 |
2° |
1-3° |
16-8 |
11 |
32000 |
40 |
2900 x 2950 x 3150 |
17000 |
RHV2025 |
2500 |
20/25 |
16/20 |
2° |
1-3° |
15-8 |
13 |
48000 |
40 |
3600 x 2950 x 3150 |
18000 |
RHV2030 |
3000 |
20/25 |
16/20 |
2° |
1-3° |
12-6 |
16 |
52000 |
40 |
4250 x 2950 x 3150 |
20000 |
RHV2040 |
4000 |
20/25 |
16/20 |
2° |
1-3° |
10-4 |
20 |
30000 |
50 |
5200 x 3050 x 3500 |
24000 |
|
| |
Standard Features: |
|
- Moving beam synchronized by differential cylinders.
- Hardened rollers guide beam for constant blade gap.
- Rank angle adjustable to suit thickness and material.
- Blade gap adjustable with levers for clean cuts.
- Sheets clamped hydraulically before cut starts.
- Shearing-clampin forces adjustable to suit job.
- Both blades premium HCHCr, four usable edges.
- Cutting length and position adjustable for shorter job.
- Beam returns on releasing foot switch for smaller cuts.
- Cutting area illuminated for clear view of blades.
- first two hold-downs spaced closer at both ends.
- Squaring arm 1000mm at left with hardened lines.
- Squaring arm 600mm at right helps distribute wear.
- Front gauging with stops, scale on squaring arm.
- Hardened rods, recessed table for easy sheet feeding.
- Sheet supports 1000mm long help support long plates.
- Ramp on rear slides out cut sheets outside shear area.
- Back gauge moves away trapping of cut sheets.
- Foot switch movable for operation from safe position.
- Finger Safety guard with clear view of lighted cutting area.
- Dependable global of hydraulics, electrical.
- Efficient compact power pack with minimal piping.
- Electrical neatly wired-labelled for trouble shooting.
|
| |
