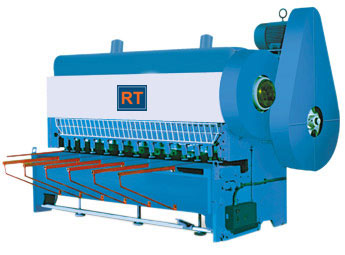

Over Crank Shearing Machine

RT Power Press Shearing Machines have been designed and developed through structural analysis technique for continuous production, accuracy and repeatability.

Frame:	Rigid steel frame of Shubham Shears are optimally designed to avoid weak sections at load supports and is of interlocked design. The ram is guided throughout its length by accurate machined guide ways ensuring proper clearance and clean cut.

Hold – Down System:	Spring loaded mechanical hold down pads hold the sheet securely, to avoid slipping and bowing resulting in clean square cuts. Hold down units are provided with oversize pads to avoid impressions on sheet metal on request.

Knives:	Shubham Shears are provided with high quality single segment (HcHcr) Knives for longer tool life. Ease in assembling of knife reduces down-time. The knife blades are four edged.

Lubrication:	All bearing parts and guide surfaces are lubricated through hand-operated lubrication system.

Mechanical Back Guage:	This is a standard equipment provided on all Shubham Shears. Scale on the back guage gives instantaneous reading of distance between shear and back guage. Thus avoiding errors and maintenance encountered in electronic equipment.

Finger Guard:	Fitted in front of hold-down for operator protection without obstructing viewing.

Specifications:

Model	Cutting Cap. In M.S. (Length x Thick)	Depth of Throat	Standard Front guage	Standard Rear guage	Table (Height/Width)	Blade (L x W x T)	Stroke Per Minute	Hold Down to Knife Edge	Machine (L x W x H)	Main motor HP / KW	Approx. Weight Kgs.
ROC612	1270 x 6	80	600	750	770/450	1270 x 75 x 18	30	45	2250 x 1950 x 2300	7.5/5.6	4500
ROC615	1525 x 6	80	600	750	770/450	1525 x 75 x 18	30	45	2500 x 1950 x 2300	10/7.7	5100
ROC620	2030 x 6	80	600	750	770/450	2030 x 75 x 18	30	45	3000 x 1950 x 2300	10/7.7	6300
ROC625	2540 x 6	80	600	750	770/450	2540 x 75 x 18	30	50	3550 x 1950 x 2300	12/9.7	7200
ROC631	3125 x 6	80	600	750	770/450	3125 x 75 x 18	30	50	4150 x 1950 x 2400	15/11.2	9800
ROC815	1525 x 8	80	600	750	770/450	1525 x 75 x 18	30	50	2570 x 1950 x 2300	12.5/9.7	6500
ROC820	2030 x 8	80	600	750	800/450	2030 x 75 x 18	25	50	3150 x 1950 x 2500	12.5/9.7	7000
ROC825	2540 x 8	80	600	750	800/450	2540 x 75 x 18	25	50	3670 x 1950 x 2500	15/11.2	8000
ROC831	3125 x 8	80	600	750	800/450	3125 x 90 x 18	25	50	4250 x 1950 x 2600	20/15	11500
ROC1020	2030 x 10	80	600	750	800/450	2030 x 90 x 18	25	75	3200 x 1950 x 2600	15/11.2	7800
ROC1025	2540 x 10	80	600	750	800/450	2540 x 100 x 22	25	75	3700 x 1950 x 2600	20/15	9100
ROC1031	3125 x 10	80	600	750	800/450	3125 x 100 x 22	25	75	4300 x 1950 x 2600	25/18.7	9600
ROC1320	2030 x 13	80	600	750	800/450	2030 x 100 x 22	25	75	3250 x 1950 x 2600	20/15	9250
ROC1325	2540 x 13	80	600	750	800/450	2540 x 100 x 22	25	75	3750 x 1950 x 2600	25/18.7	10500
ROC1331	3125 x 13	80	600	750	800/450	3125 x 100 x 22	25	75	4350 x 1950 x 2600	30/22.5	13000

Standard Features:

Options:

Motorised Back Guage.
Automatic Lubrication System.
Vee-Belts.
Electric Motor & Starter / Control Panal Board.
Squaring Guage System.
Stroke Counter.
Extension Squaring Arm.
Hydraulic Holddown Pads (Cam-Pump).
All Dimensions are in mm.
Power Supply 400/440 volts, 3 Phase, 50 Cycle.
As day to day improvements are contemplated for better performance of the machine. We reserve the rights to alter the specifications without prior notice.
All the machines undergo a through check-up by our expert engineers before dispatch to ensure their smooth and trouble free operation.
