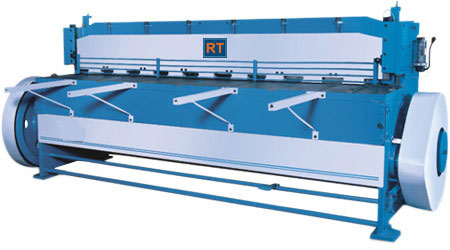

Under Crank Shearing Machine
Under Crank Shearing Machine


RT Power Press Shearing Machines have been designed and developed through structural analysis for continuous production, accuracy and repeatability.



Frame:

Rigid steel frame of Shubham Shears are optimally designed to avoid weak sections at load supports and is of interlocked design. The ram is guided throughout its length by accurate machined guide ways ensuring proper clearance and clean cut.



Hold – Down System:

Spring loaded mechanical hold down pads hold the sheet security, to avoid slipping and bowing resulting in clean square cuts. Hold down units are provided with oversize pads to avoid impressions on sheet metal on request.



Knives:

Shubham Shears are provided with high quality single segment (HcHcr) Knives for longer tool life. Ease in assembling of knife reduces down-time. The knife blades are four edged.



Lubrication:

All bearing parts and guide surfaces are lubricated through hand-operated lubrication system.



Mechanical Back Guage:

This is a standard equipment provided on all Shubham Shears. Scale on the back guage gives instantaneous reading of distance between shear and back guage. Thus avoiding errors and maintenance encountered in electronic equipment.



Finger Guard:

Fitted in front of hold-down for operator protection without obstructing viewing.



Specifications:



Model

Cutting Cap. In M.S.
(Length*Thick)

Depth of Throat

Standard Front guage

Standard Rear guage

Table
(Height/Width)

Blade
(L x W x T)

Stroke Per Minute

Hold Down to Knife Edge

Machine
( L x W x H )

Main motor
HP / KW

Approx. Weight Kgs.

RUC212

1270 x 2

80

600

750

850/425

1270 x 50 x 12

60

20

2200 x 1950 x 1400

2/1.5

1800

RUC215

1525 x 2

80

600

750

850/425

1525 x 50 x 12

60

20

2450 x 1950 x 1400

3/2.2

2050

RUC220

2030 x 2

80

600

750

850/425

2030 x 50 x 12

60

20

2950 x 1950 x 1400

5/3.7

2600

RUC225

2540 x 2

80

600

750

850/425

2540 x 50 x 12

50

20

3450 x 1950 x 1400

5/3.7

3350

RUC231

3125 x 2

80

600

750

850/425

3125 x 50 x 12

50

20

4150 x 1950 x 1400

7.5/5.6

4100

RUC412

1270 x 4

80

600

750

850/450

1270 x 63 x 14

50

25

2290 x 2000 x 1525

5/3.7

2500

RUC415

1525 x 4

80

600

750

850/450

1525 x 63 x 14

50

25

2540 x 2000 x 1525

5/3.7

2900

RUC420

2030 x 4

80

600

750

850/450

2030 x 63 x 14

50

25

3050 x 2000 x 1525

7.5/5.6

3300

RUC425

2540 x 4

80

600

750

850/450

2540 x 63 x 14

50

25

3550 x 2000 x 1525

7.5/5.6

4000

RUC431

3125 x 4

80

600

750

850/450

3125 x 63 x 14

50

25

4200 x 2000 x 1525

10/7.5

4750



Standard Features:


  • Foot Pedal.
  • Fly Wheel & Gear Guard.
  • Self Lubrication System
  • Motor Pully
  • A Pair of Four Edge Sher Blade
  • Standard Front Guage
  • Back Guage (Manual Operated)


Options:

  • Motorised Back Guage.
  • Automatic Lubrication System.
  • Vee-Belts.
  • Electric Motor & Starter / Control Panal Board.
  • Squaring Guage System.
  • Stroke Counter.
  • Extension Squaring Arm.
  • Hydraulic Holddown Pads (Cam-Pump).
  • All Dimensions are in mm.
  • Power Supply 400/440 volts, 3 Phase, 50 Cycle.
  • As day to day improvements are contemplated for better performance of the machine. We reserve the rights to alter the specifications without prior notice.
  • All the machines undergo a through check-up by our expert engineers before dispatch to ensure their smooth and trouble free operation.
